Implants

PFZ implant crown, FMZir implant crown and customised Zr/Ti abutment also available in the Quest Range.

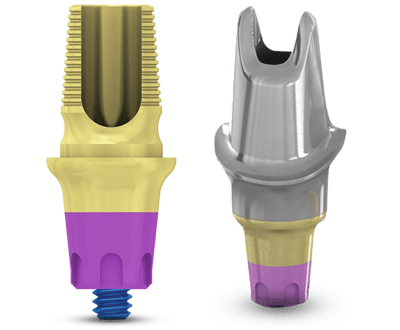

Abutment options for implants

Material options for implants

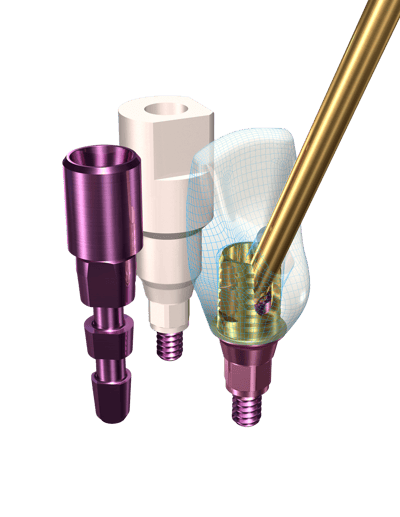

Screw-retained Restorative Options

The abutment and crown are an integrated unit. The options are:

  • Cast abutments – veneered with porcelain or composite
  • Titanium base – CAD/CAM (adhesive bases for monolithic or laminated zirconium-oxide, lithium disilicate or ceramic-composite hybrids)

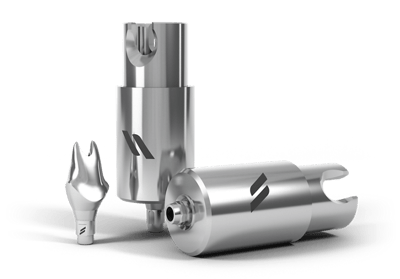

  • Milled abutments – Metal (titanium or CoCr) or Zirconia



RESTORATION RETAINED INDICATIONS EXPLANATORY NOTES
PFM Universal Direct to fixture with High Noble, Noble and Cobalt Chromium or Titanium superstructure with porcelain veneering
IPS e.max® Limited Titanium interface, monolithic combination abutment and crown
Reduced strength/care in case selection
(optimal translucent effect)
PFZ/Lava™ Classic Zirconia Frame Aesthetics/Strength Titanium interface, zirconia abutment with veneering ceramic
(optimal aesthetics)
FMZ Economical/Strength Titanium interface, monolithic combination abutment and crown
(optimal strength)

Cement-retained Restorative Options

RESTORATION CAST GOLD ABUTMENT TITANIUM OR Co/Cr ABUTMENT ZIRCONIA ABUTMENT* INDICATIONS
PFM Limited Universal
IPS e.max® Limited Limited High Aesthetics
PFZ/Lava™
Classic Zirconia Frame

(Aesthetics +)
Aesthetics
+ Strength
FMZ Limited Strength
+ Economical

 *Titanium interface in some cases

1. Titanium interface is strong. When it is torqued down, it is unlikely to split zirconia abutments.
2. Some systems have a pure zirconia abutment direct to fixture depending on:

  • size of implant (narrow implants are unsuitable)
  • compatibility with scanners



Hybrid Restorations

  • Screw-retained hybrids offer a very cost-effective fixed-prosthesis option
  • Comprised of a cast of milled metal substructure layered with pink acrylic to retain acrylic denture teeth
  • Some degree of lost tissue replacement is possible
  • Implant positioning and angles must be favourable or angled abutments can be used to “correct” the angle so that screw access holes are in lingual or palatal or occlusal position
  • These restorations are readily retrievable and also easily repaired
  • To facilitate good patient care and plaque control, careful design is important
